MINI Size(3-24W)-Non Flicker

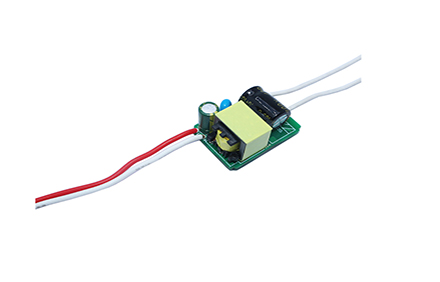

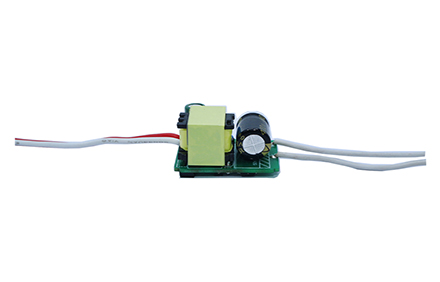

Mini Size Led Power Supply 10w

  • Specification
  • Features
  • uModel: HZD010BXI
  • Input voltage: 85-265vAC
  • AC frequency: 50/60Hz
  • Output frequency: >35K Hz
  • Output voltage: 3-9V/9-18V/18-36V/36-48V
  • Output current: 1250mA/600mA/320mA/250mA
  • Output Power: 10w
  • Power Factor: 0.5
  • Efficiency: 80-87%
  • Size: 37*26*23mm
  • Warranty: 3 Years
  • CE ROHS TCC TUV UL
  • Isolated
  • No Flicker
  • Small size
  • With case
  • Scope of application: ceiling light; panel light; down light; bulb etc
  • Protections: Short Circuit/Over Voltage/Over termperature
  • Working temperature: -35~+60 ℃
  • Storage temperature: -40~+80 ℃

Download Data Sheet



Description



    Isolated led bulb driver with 85-265Vac input, 3V-9V 9V-18V 18V-36V 36V-48Vdc 1250mA 600mA 300mA output, high EF 86-90%. This 10W led driver is non-flicker, small volume and low cost, which can be used for all kinds of small size requirements of the built-in mode and external mode. This series has 5W-10W LED drivers to choose from and we also accept customization.



Application




                                                   700ma-led-driver-shoot-light                                                                   10w-led-driver-canister-light

                                                      700mA led driver shoot light                                                                                10W led driver canister light

                                                   led-power-supply-10w-crystal-lamp                                                                   led-driver-9v-track-light

                                                 led power supply 10W crystal lamp                                                                          led driver 9V track light



Series



HXN series--Input 170-245V,Low PF,No flicker

7W-HAD007HXN 12W-HAD012HXN 24W-HZD024HXN

BXI series--Input 85~265V,High PF,Flicker

5W-HAD005BXI-A/HAD005BXI-B 9W-HAD009BXI-A 9W-HAD009BXI-B 10W-HZD010BXI
