Dimmable LED Driver

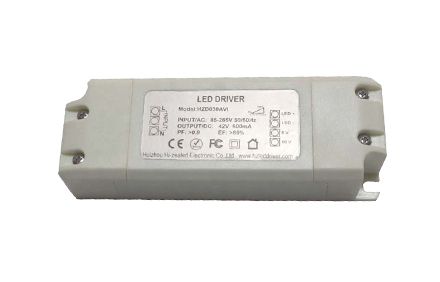

0-10V Dimmable Led Driver 30W

Specification
Features

Model: HZD030AVI
Input voltage: 100-265Vac
AC frequency: 50/60Hz
Output voltage: 27-42V/36-54V/54-72V
Output current: 600mA/600mA/350mA
Output Power: 10W-30W
Power Factor: 0.95
Efficiency: 85%
THD:<15%
Frame size:120mm*42mm*27mm

CE,ROSH,FCC
Stable performance
No Flicker
0-10V dimming design
High PF
Scope of application: ceiling light、spot light、panel light etc

Download Data Sheet

Description

This 30W led power supply committed to 0-10V dimmer driver, and there are flicker options which low cost for developing the market for new customers. Whose series is available from 15W to 45W, and this 30W dimmable led power supply is isolated one with 100-265Vac voltage input, 27-42V 36-54V 54-72V voltage output and 350mA, 600mA current output.

Application

led driver 30W for bedroom light 0-10V dimmable led power supply for ceiling lamp

0-10v-dimmer-driver-for-circular-lamp

0-10V dimmer driver for circular lamp 30W 0-10V dimmable led driver for art lamp
